Simple Method for Parsing Magnetic Stripe (Credit Card Example)

Short blog post for you today.  I put together a simple C# example of how to parse magnetic stripe data, and as you can see in the code below, it's written to more specifically deal with credit card data.  For those of you that aren't aware, there are typically two tracks of data, and some cards have three.  You can use a simple USB magnetic stripe card reader (something like this, or see image below) with a credit card and this code to take advantage of the data stored in the magnetic stripe.

Attaching the card reader to your computer (via USB) and swiping a card yields something similar to the following (portions redacted using the 'X' character):

%B4XXXXXXXXXXX9554^CHRISTNER/JOEL ^1504101100001100000000447000000?;4XXXXXXXXXXX9554=150410110000447?

If you look at the structure specified on Wikipedia (I prefer this one, personally: http://www.gae.ucm.es/~padilla/extrawork/magexam1.html) you'll see that this card only has two tracks of data.

When run through the code snippet below using the USB card reader, the output looks as follows:


Input track data: %B4XXXXXXXXXXX9554^CHRISTNER/JOEL ^1504101100001100000000447000000?;4XXXXXXXXXXX9554=150410110000447?
Data:
  Track1: %B4XXXXXXXXXXX9554^CHRISTNER/JOEL ^1504101100001100000000447000000?
    CCN: 4XXXXXXXXXXX9554
    Exp: 04/15
    CVV: 447
    Cardholder: CHRISTNER/JOEL
  Track2: ;4XXXXXXXXXXX9554=150410110000447?
    CCN: 4XXXXXXXXXXX9554
    Exp: 04/15
    PIN: 000
  Track3:


And here is the code snippet.  Note that there is no error handling whatsoever in this code, and that is intentional.


        static void Main(string[] args)
        {
            string track_data = "";
            Console.Write("Input track data: ");
            track_data = Console.ReadLine();

            string track1 = "";
            string track2 = "";
            string track3 = "";
            string track1_cardholder = "";
            string track1_expmo = "";
            string track1_expyr = "";
            string track1_cvv = "";
            string track1_ccn = "";
            string track2_ccn = "";
            string track2_expmo = "";
            string track2_expyr = "";
            string track2_encpin = "";

            bool in_track_1 = true;
            bool in_track_2 = false;
            bool in_track_3 = false;
            bool track1_caret1_found = false;
            bool track1_caret2_found = false;
            bool track2_equals_found = false;

            int track1_leg3_count = 0;
            int track2_leg2_count = 0;

            foreach (char c in track_data)
            {
                if (in_track_1)
                {
                    #region Track1

                    if (!track1_caret1_found)
                    {
                        #region Get-Track1-CCN

                        if ((c != '%') && (c != 'B') && (c != '^'))
                        {
                            track1_ccn += c;
                        }

                        if (c == '^')
                        {
                            track1_caret1_found = true;
                            track1 += c;
                            continue;
                        }

                        #endregion
                    }

                    if (track1_caret1_found && !track1_caret2_found)
                    {
                        #region Get-Cardholder-Name

                        if (c != '^')
                        {
                            track1_cardholder += c;
                        }
                        else
                        {
                            track1_caret2_found = true;
                            track1 += c;
                            continue;
                        }

                        #endregion
                    }

                    if (track1_caret1_found && track1_caret2_found)
                    {
                        #region Get-Expiration-and-CVV

                        if (track1_leg3_count == 0) track1_expyr += c;
                        if (track1_leg3_count == 1) track1_expyr += c;
                        if (track1_leg3_count == 2) track1_expmo += c;
                        if (track1_leg3_count == 3) track1_expmo += c;
                        if (track1_leg3_count == 22) track1_cvv += c;
                        if (track1_leg3_count == 23) track1_cvv += c;
                        if (track1_leg3_count == 24) track1_cvv += c;
                        track1_leg3_count++;

                        #endregion
                    }

                    track1 += c;
                    if (c == '?')
                    {
                        in_track_1 = false;
                        in_track_2 = true;
                        continue;
                    }

                    #endregion
                }

                if (in_track_2)
                {
                    #region Track2

                    if (!track2_equals_found)
                    {
                        #region Get-Track2-CCN

                        if ((c != ';') && (c != '='))
                        {
                            track2_ccn += c;
                        }

                        if (c == '=')
                        {
                            track2_equals_found = true;
                            track2 += c;
                            continue;
                        }

                        #endregion
                    }

                    if (track2_equals_found)
                    {
                        #region Get-Expiration-and-Encrypted-PIN

                        if (track2_leg2_count == 0) track2_expyr += c;
                        if (track2_leg2_count == 1) track2_expyr += c;
                        if (track2_leg2_count == 2) track2_expmo += c;
                        if (track2_leg2_count == 3) track2_expmo += c;
                        if (track2_leg2_count == 8) track2_encpin += c;
                        if (track2_leg2_count == 9) track2_encpin += c;
                        if (track2_leg2_count == 10) track2_encpin += c;
                        track2_leg2_count++;

                        #endregion
                    }

                    track2 += c;
                    if (c == '?')
                    {
                        in_track_2 = false;
                        in_track_3 = true;
                        continue;
                    }

                    #endregion
                }

                if (in_track_3)
                {
                    #region Track3

                    track3 += c;

                    #endregion
                }
            }

            Console.WriteLine("Data:");
            Console.WriteLine("  Track1: " + track1);
            Console.WriteLine("    CCN: " + track1_ccn);
            Console.WriteLine("    Exp: " + track1_expmo + "/" + track1_expyr);
            Console.WriteLine("    CVV: " + track1_cvv);
            Console.WriteLine("    Cardholder: " + track1_cardholder.Trim());
            Console.WriteLine("  Track2: " + track2);
            Console.WriteLine("    CCN: " + track2_ccn);
            Console.WriteLine("    Exp: " + track2_expmo + "/" + track2_expyr);
            Console.WriteLine("    PIN: " + track2_encpin);
            Console.WriteLine("  Track3: " + track3);
            Console.ReadLine();
        }

Tough Mudder SoCal Temecula 2/9/2013 Review

Hi everyone - just completed Tough Mudder SoCal Temecula today (2/9/2013) with a bunch of my friends from Cube.  I trained for this event the absolute wrong way.  The past few years of training have been primarily weight/resistance centric and up until about 5 months ago very little cardio.  I started adding cardio into the routine and given the distance I was naturally worried that I wasn't doing enough cardio training.

Turns out, my cardio performance was just fine.  But I completely underestimated the obstacles and the amount of muscle endurance required to not feel like death after completing them.  But then again, maybe that's how I'm supposed to feel.

A course map can be found here: http://toughmudder.com/wp-content/uploads/2013/01/SoCalWinter_Map.pdf

The race was about 11.5 miles with a 1mile walk each way to and from the car.  Almost all of the non-obstacle parts of the race were spent going up and down hills.  The hill runs were ridiculous.  They were steep, some of them were covered in mud, and it was very difficult maintaining even a jog for much of it.  If you are planning to do a Tough Mudder or similar event, do a lot of hill training.  I did a fair bit on the treadmill, but that wasn't enough (clearly).

Here are some details of the obstacles we encountered and my recommendations (where appropriate):

• Kiss of Mud - crawling on your belly under barbwire through the mud.  I like to think of this as the "Welcome to Tough Mudder" obstacle.  Not difficult at all, but breaking you of any thoughts of trying to stay clean
• Berlin Walls - we had this twice.  Definitely a good idea to help a couple of extra people out.  Have one person on either side, one cupping their hands for you to step on (and lift) and one on the other side so you can step on their shoulder.  When you get to the stop, swing around, re-orient your grip, and slowly lower yourself and drop
• Wounded Warrior Carry - straight-forward - carry your partner, let them carry you.  It's 100yd each (not too bad).  Farmer's Walks will probably help here
• Arctic Enema - ZOMG.  This was absolutely the worst thing ever.  Ever.  I read an article that said the temperature of water that was full of ice should hover around 32-33 degrees F.  Not only that, you have to jump in, then duck under a wood beam (barbed wire keeps you from going over), and the somehow bring yourself to get out of this frozen bath.  I don't know what to say to help you train for this.  Perhaps take really really really cold baths and keep your mind sane and focused
• Funky Monkey - ah the monkey bars.  Takes me back to grade school.  Except there was a pool of frigid water below.  And all the people that went before me made the bars wet and slippery (read: muddy).  Yeah, I fell in.
• Mud Mile - ok, this one might have been the hardest one period.  It should have been named mud mogles.  It was 7 hills of mud, each about 5-6 feet high, with pools of muddy water in between.  And when I say mud mogles, they were legitimate hills.  Very difficult to get through.  I can't stress how difficult this one was.

Yeah, I'm excited.  I'll try and cover the rest later.

Cube blog is now live!

A quick update - the Cube blog is now live!  We've opened it up to everyone on the team and it won't just be marketing material.  To prove the point, I've hidden a link to a cat video in there - yes, on my work blog. Please take a read when you have some time and keep your eye out for the material our team publishes.  I anticipate it will be educational and fun.

http://blog.getcube.com

How I ran a spontaneous, impromptu marathon with little training

As many of you know, I came to Dallas this weekend to be a cheering squad for someone that was running the MetroPCS White Rock Dallas Marathon.  And, figuring that I would try to finish it - and not care if I failed (well, let's get serious - I was carrying a huge fear of failing after I had just told the world on Twitter, Facebook, and LinkedIn) - I went for it, and signed up.

First problem - I came down here with NO gear other than what I usually take to the gym with me.  Immediately after registering (the day before the marathon, which was also the packet pick-up day), I had to buy the gear I would need.  ALL of it.  Thankfully, there was an expo (imagine that).  Prices were surprisingly reasonable.  An hour later I was registered, had my shoes, shorts, shirt, socks, and a water bottle with integrated grip.

I'm not sure if writing this will help anyone that is either wanting to do a spontaneous or impromptu marathon (yes, I'm intentionally putting both of these words in to help optimize search engine crawling, because these are the terms I used) or is planning to do a marathon with little to no training.

Full disclosure: I had done some training.  I picked up cardio workouts about two months ago and usually had one long run every week or every other week.  But, the longest distance I had gone was only 9 miles.  Naturally, I was quite freaked when I fully wrapped my head around the fact that I would be running 26.2 miles (almost 3X my previous PR).

Before I get into some of the helpful pointers that I learned (via research and from other runners), I want to be transparent and tell you that my time was not that great.  Our group was running a pace between around 4.8 and peaking at a little over 6 occasionally with frequent walk intervals.  I hit the wall at 18 and never recovered, so I was stuck hobbling the last 8 miles with very few periods of running.

But, I finished.  And I'm hungry to do it again.

Now for the things that were helpful.  Hopefully they will help you, too:

• Go out slow.  When I say slow, I mean unnaturally slow.  We went out at around 4.8 to 6 and my usual running pace is normally between 7 and 8mph
• Don't run the whole time.  Set a reasonable interval, at least to start, if not for the entire marathon.  We used a 3:1 interval (run 3, walk 1).  Realistically, I should have switched to a 2:2 interval half-way through and I probably would have shaved some time off
• Stay hydrated, but drink more than water.  You run the risk of being depleted of sodium, so drink Gatorade too.  Helpful tip: keep your water separated from the Gatorade.  Don't pollute your water.  There were times when I wished I had water, and I had unfortunately polluted my water bottle with Gatorade.  Not good when you have dry mouth
• If at all possible, wear gear that you have worn before - especially your shoes.  Mine were brand new.  Immediately after I purchased them I went to the gym to log a few miles in them to make sure they would be ok.  Thankfully they were, and I only had one blister by the end of the race
• Get Vaseline and lube your nipples.  Lube anywhere that a seam comes in contact with your skin, particularly in areas where the seam will be moving.  Yes, this means your private parts.  No one likes running with swamp ass, but I have practically no chafing right now
• Go to the bathroom before the race (you don't want to run with a rock in your stomach) and during the race as soon as you feel the urge.  You don't want your nerves derailing your concentration while you are running
• Get a good night of sleep.  Go to bed early, because your nerves will probably keep you from falling asleep right away.  I was just advised to recommend that you get a good night of sleep the night before that, too
• Take one snack with a good mix of carbs and protein, like a Builder Bar.  Eat this after you get through the half way point
• I also took 6 GU/Clif gels and 2 Clif shot blocks.  I didn't get through them all, but I found that nibbling on a shot block (there are six in a package) at about every other mile gave me a nice 'treat' and some energy.  I took a gel about every 3-4 miles, but again, I hit the wall at 18 and couldn't recover
• I didn't carboload the night before, but I did have a pasta dish.  It definitely helped.  What was also helpful was having a GU/Clif gel about 60 minutes prior to the start of the race to get the sugar into my system and mostly processed
• LISTEN TO YOUR BODY.  If you need to slow down, do it.  If you need to walk, do it.  If you need to stretch, do it.  I stopped to stretch twice in the first 18 miles, and eight times in the last 8 miles.  I might have delayed hitting the wall had I done a better job of listening to my body and walked and stretched more
• Take music with you, but don't listen to it the whole time.  I listen to Christian, rock, and electronic music, and listened mostly to electronic music the entire time.  GREAT for running, but can also hypnotize you especially when your body starts releasing endorphins.  Ground yourself in reality every now and again by removing your headphones
• Evaluate what your body is saying on a regular basis.  Is my breathing normal?  Where am I feeling pain?  What is currently holding me back?  Can I safely go faster and add more stress to my system?  If not, should I dial back?  I don't know about yours, but my body is very vocal on what it's experiencing.  I just have to listen

Hopefully these tips - and my experience - will be helpful to you.  I've certainly learned a lot and can't wait for the next one, now that I know I can do it.

Oh - one more thing...  I never fully appreciated people that cheered on the runners until I was one of the runners.  Be an encouragement to the people running with you and thank the people working the event.  And when you see a race going through your neighborhood, be sure to cheer them on.  Their words of encouragement made it easier to keep going.

Please comment below if you'd like to add anything to the list.

GOOD LUCK!

Proud to Announce Availability of Cube

Today we are proud to announce availability of Cube.  We at Cube have been working hard to build a world-class point of sale system to make life better for business owners.  The point of sale market has seen a tremendous lack of innovation over the past several years for many reasons - existing vendors addicted to selling legacy hardware at high margins, complicated systems that are difficult to integrate leading to a lack of interest in optimization and enhancement, a long and windy value chain that is on the cusp of collapse keeping vendors from upsetting the apple cart - and unfortunately for merchants, they're left choosing from a buffet of sub-par solutions that make managing and growing their business more difficult and complicated.

This era is officially coming to an end.

Cube is a fully-integrated point of sale system that runs on any device (iPad, PC, Mac) that allows you to manage your business from anywhere and grow on-demand.  Gone are the days of expensive, legacy hardware and ridiculous maintenance contracts (use your iPad, laptop, or PC).  Gone are the days of calling in consultants to change your menu (use our simple web management dashboard).  Gone are the days of purchasing software licenses for basic reporting functions (yes, that's in there, too).  Gone are the days of costly software upgrades (update the app or hit the 'refresh' button).  Gone are the days of forcing your customers to funnel into a long line toward a desk where two or more antiquated point-of-sale systems are operated by cashiers that rarely get a chance to interact with your customers (take the iPad with you to where your customers are looking at your product).  Gone are the days of using pen and paper because you want to sell some of your products at a show or a market outside of your business (take it with you and transact business from anywhere).  Gone are the days of enduring a rigorous colonoscopy to get a merchant account (we've integrated credit card payments).  Gone are the days of not knowing your customers (you can associate your customers to orders to better support loyalty and rewards programs).

And most importantly, gone are the days of dealing with terrible support.  Yes, we have that covered.  Every employee at Cube is a customer support representative, and yes, you can call us.  No questions asked.  We prefer to be on a first-name-basis with our customers.

All of this is possible with Cube.  I'm proud to say that during our private beta we acquired a large number of customers - each of them vetting out the system, helping us eliminate bugs, and shaping the direction of the product with one purpose - make the point-of-sale a simple, easy-to-use hub through which the entire business can be managed.  It makes perfect sense - the point-of-sale is where in-person transactions are performed.  It's the experience that your customer is left with when finishing their transaction with you.  That customer should have as much delight in working with you and your business as you do in managing your business.  That's Cube.

For the techie geeks out there (like me), you'll find at the heart of Cube a big data platform.  A natively multi-tenant cloud service that is reachable from anywhere in the world - securely.  An extensible cloud service that is built from the ground up as a series of APIs (even our mobile and web apps are built using these APIs - nothing is 'private' and nothing is 'held back').  A powerful data service that allows a developer to answer big questions very quickly.  An open in-person transaction platform that allows value-added software vendors to quickly integrate their services into the experience that our merchants are able to offer their customers.

Our open approach to building an in-person transaction platform by revolutionizing the point-of-sale is unique.  As we speak, developers at partner companies are rapidly building value-added services that integrate directly.  Our architecture allows us to confidently claim that we at Cube have the most powerful application platform available to developers, giving our merchants the most opportunity to give their customers delight, simplify business management, and grow without headache.

We'll be making a self-service on-boarding process available in the very near future, but in the meantime, request a demo and we will get an account created for you so you can start using Cube.  We're ecstatic to meet new merchants that we can provide a game-changing transaction platform to, and we know you'll be ecstatic to use it.

https://www.getcube.com

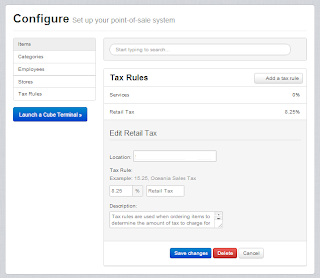

(these screenshots are from actual Cube merchants)
